[nextjs]SNS Server-8(myapp18)

👉🏻 myapp18에서는 개별글 확인과 타임라인을 구현합니다.
In myapp18, we implement the viewing of individual posts and the timeline.

👉🏻 데이터베이스 성능 향상을 위해서 인덱스를 추가합니다.
Indexes are added to improve database performance.

📁 전체 프로젝트 구조 / Overall Project Structure

myapp18/
├── app/  (Next.js App Router)
│   ├── .well-known/webfinger/route.ts  -> webfinger
│   ├── api/posts/route.ts     -> Writing API
│   ├── api/follow/route.ts    -> Follow API(temporary)
│   ├── api/timeline/route.ts  -> Timeline API
│   ├── users/[username]/
│   │   ├── statuses/[id]/route.ts -> Indivisual Post
│   │   ├── route.ts               -> Acotr Information
│   │   ├── followers/route.ts     -> Followers List
│   │   ├── following/route.ts     -> Following List
│   │   ├── inbox/route.ts         -> Inbox
│   │   └── outbox/route.ts        -> outbox
│   ├── usersui/[username]/page.tsx  -> Timeline UI
│   ├── layout.tsx, page.tsx, globals.css
│   └── favicon.ico
├── lib/
│   ├── ap.ts                  -> Follow Accept
│   └── db.ts                  -> DB connection
├── data/
│   └── keys/                  -> private.pem, public.pem
├── data.sqlite                -> Database
├── Caddyfile                  -> https
└── package.json

📁 프로젝트 시작(myapp18)
Project Start (myapp18)

npx create-next-app@latest

📁 SQLite설치 / Installing SQLite

cd ~/myapp18
npm install better-sqlite3
npm install -D @types/better-sqlite3

📁 DDNS,https설정 / DDNS,https settings

[nextjs]nextjs+domain(ddns)+https(caddy)

📁 데이터베이스 스키마 보완
Database schema supplementation

✔️ 데이터 베이스 부분과 코드를 보완합니다.
I am refining the database components and the code.

✔️ 인덱스 추가 / Add Index

— 인덱스에 대한 추가 설명은 가장 아래 부분의 설명을 참조 하세요
Please refer to the explanation at the very bottom for additional details regarding the index.

-- 1. posts 타임라인용 (필수) / Posts for timeline (Required)
CREATE INDEX idx_posts_username_created ON posts(username, created_at DESC);

-- 2. inbox_posts 타임라인용 (필수) / inbox_posts for timeline (Required)
CREATE INDEX idx_inbox_username_created ON inbox_posts(username, created_at DESC);

-- 3. inbox_posts actor 검색용 (선택) / inbox_posts actor search term (optional)
CREATE INDEX idx_inbox_actor ON inbox_posts(actor);

✔️ 인덱스 작동 확인 / Verify index operation

sqlite> EXPLAIN QUERY PLAN SELECT * FROM posts WHERE username='user1' ORDER BY created_at DESC;
QUERY PLAN
`--SEARCH posts USING INDEX idx_posts_username_created (username=?)
sqlite> EXPLAIN QUERY PLAN SELECT * FROM inbox_posts WHERE username='user1' ORDER BY created_at DESC;
QUERY PLAN
`--SEARCH inbox_posts USING INDEX idx_inbox_username_created (username=?)
sqlite>

---

📁 개별글 라우트 / Individual Post Route

✔️ myapp18/app/users/[username]/statuses/[id]/route.ts

// myapp18✅/app/users/[username]/statuses/[id]/route.ts
import db from '@/lib/db';
import { NextRequest, NextResponse } from 'next/server';

export async function GET(
  req: NextRequest,
  { params }: { params: Promise<{ username: string; id: string }> }
) {
  const { username, id } = await params;

  // posts table
  let post: any = db.prepare(
    `SELECT * FROM posts WHERE id = ? AND username = ?`
  ).get(id, username);

  // inbox_posts table
  if (!post) {
    // inbox는 id가 전체 URL이라 LIKE로 찾기
    // inbox uses the full URL as id, so we search with LIKE
    post = db.prepare(
      `SELECT * FROM inbox_posts WHERE id LIKE ? AND username = ?`
    ).get(`%${id}`, username);
  }

  if (!post) {
    return new NextResponse('Not found', { status: 404 });
  }

  const base = process.env.NEXT_PUBLIC_BASE_URL || 'https://aloy-horizon.duckdns.org';
  const url = `${base}/users/${username}/statuses/${id}`;

  return NextResponse.json({
    "@context": "https://www.w3.org/ns/activitystreams",
    id: url,
    type: "Note",
    attributedTo: `${base}/users/${username}`,
    content: post.content,
    published: post.created_at,
    to: ["https://www.w3.org/ns/activitystreams#Public"],
  });
}

📁 타임라인 API / Timeline API

✔️ myapp18/app/api/timeline/route.ts

// app/api/timeline/route.ts
// myapp18✅
import db from '@/lib/db';
import { NextResponse } from 'next/server';

export async function GET(req: Request) {
  const { searchParams } = new URL(req.url);
  const username = searchParams.get('username') || 'user1';

  const timeline = db.prepare(`
    SELECT id, content, username, created_at, 'mine' as source
    FROM posts WHERE username = ?
    UNION ALL
    SELECT id, content, username, created_at, 'inbox' as source
    FROM inbox_posts WHERE username = ?
    ORDER BY created_at DESC
    LIMIT 50
  `).all(username, username);

  return NextResponse.json(timeline);
}

📁 프로필 UI에서 타임라인 붙이기
Adding a timeline to the profile UI

✔️ myapp18/app/usersui/[username]/page.tsx

// app/usersui/[username]/page.tsx
import db from '@/lib/db';

export default async function Page({ params }: { params: Promise<{ username: string }> }) {
  const { username } = await params;

  // 동일한 테이블이기 때문에 사용가능
  // Same table, so it's available
  const timeline = db.prepare(`
    SELECT id, content, created_at, 'mine' as source FROM posts WHERE username=?
    UNION ALL
    SELECT id, content, created_at, 'inbox' as source FROM inbox_posts WHERE username=?
    ORDER BY created_at DESC LIMIT 50
  `).all(username, username) as any[];

  /*
  // UNION ALL을 쓰지 않고, 두 쿼리를 따로 실행한 후 합치고 정렬하는 방법
  // You can also execute two queries separately and then merge and sort them without using UNION ALL

  const mine = db.prepare(`SELECT ... FROM posts ...`).all(username);
  const inbox = db.prepare(`SELECT ... FROM inbox_posts ...`).all(username);
  const timeline = [...mine, ...inbox].sort(...)
  */

  return (
    <div style={{ padding: 20 }}>
      <h1>{username} 타임라인 / Timeline</h1>
      <ul>
        {timeline.map((p:any) => (
          <li key={p.id}>[{p.source}] {p.content} - {p.created_at}</li>
        ))}
      </ul>
    </div>
  );
}

📁 테스트 / Test

✔️ 개별 글 라우트 / Indivisual post route

— 데이터베이스의 username과 id가 파라메터가 됩니다.
The database username and ID serve as parameters.

— inbox_posts테이블의 개별글은 id로 url은 제외하고 해시값만 입력합니다.
For individual posts in the inbox_posts table, only the hash value is entered—excluding the URL—based on the ID.

# posts table post
https://aloy-horizon.duckdns.org/users/user1/statuses/aea0ec89-a368-44a9-8493-b2bd82a797a8

{
  "@context": "https://www.w3.org/ns/activitystreams",
  "id": "https://aloy-horizon.duckdns.org/users/user1/statuses/aea0ec89-a368-44a9-8493-b2bd82a797a8",
  "type": "Note",
  "attributedTo": "https://aloy-horizon.duckdns.org/users/user1",
  "content": "post test! #test",
  "published": "2026-08-11 12:08:18",
  "to": [
    "https://www.w3.org/ns/activitystreams#Public"
  ]
}

# inbox_posts table post
https://aloy-horizon.duckdns.org/users/user1/statuses/01M0EJPP57WC47FAK0N395S7MB

{
  "@context": "https://www.w3.org/ns/activitystreams",
  "id": "https://aloy-horizon.duckdns.org/users/user1/statuses/01M0EJPP57WC47FAK0N395S7MB",
  "type": "Note",
  "attributedTo": "https://aloy-horizon.duckdns.org/users/user1",
  "content": "\u003Cp\u003Einbox_posts table test\u003C/p\u003E",
  "published": "2026-08-15 12:16:15",
  "to": [
    "https://www.w3.org/ns/activitystreams#Public"
  ]
}

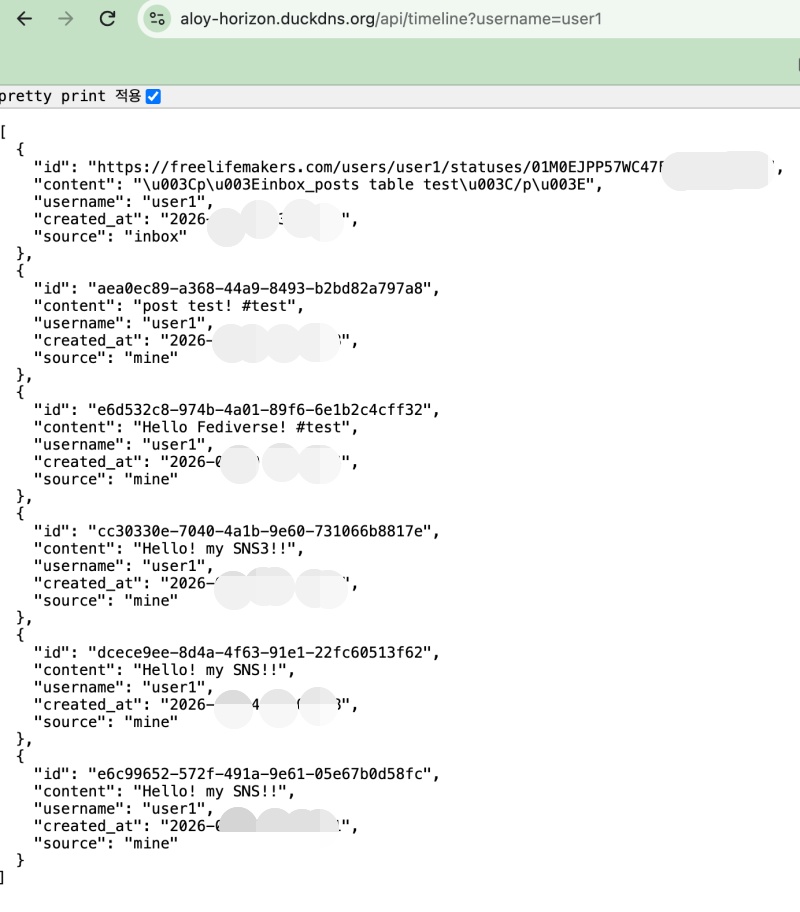

✔️ 타임라인 API / TImeline API

https://aloy-horizon.duckdns.org/api/timeline?username=user1

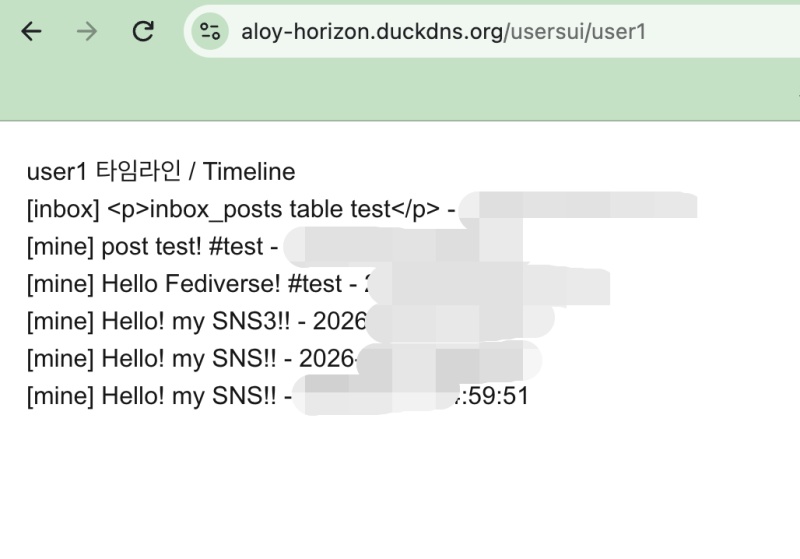

✔️ 타임라인 UI / Timeline UI

https://aloy-horizon.duckdns.org/usersui/user1

---

📁 인덱스 / Index

✔️ 인덱스는 데이터베이스 검색시 빠른 검색을 위해서 사용됩니다.
Indexes are used to enable fast searches when querying a database.

✔️ sqlite데이터베이스에 다음과 같은 인덱스를 사용하고 있습니다.
I am using the following index in the SQLite database.

CREATE INDEX idx_posts_username_published ON posts(username, published DESC);

— 그러면 아래와 같은 상황에서 작동합니다.
Then, it operates in the following situation.

— 앞에서부터 순서대로 맞으면 작동합니다.
It operates if the conditions are met in the specified order, starting from the beginning.
(ON posts(username, published DESC))

-- username만 있어도 작동합니다.
It works with just the username.
-- 라벨 앞부분으로 찾기 가능 합니다.
You can search using the front part of the label.

WHERE username='user1'

-- username + published 정렬은 완벽히 작동합니다.
Sorting by username + published works perfectly.
-- 라벨이랑 100% 일치하는 경우이고 제일 빠릅니다.
This is the case where it matches the label 100%, and it is the fastest method.

WHERE username='user1' ORDER BY published DESC

-- username + published 조건도 작동합니다.
The username + published condition also works.
-- 앞+뒤 다 사용하는 경우입니다.
This is a case where both the front and back are used.

WHERE username='user1' AND published > '2026-05-10'

— 다음과 같이 username같이 앞부분 부터 조건이 맞지 않는 조건은 작동하지 않습니다.
Conditions that do not match from the beginning—such as username—will not work.

-- published만 검색하는 경우 입니다.
This applies when searching only for 'published' items.
-- 라벨 앞이 username인데 username 조건이 없기 떄문에 인덱스 검색이 작동하지 않습니다.
The `username` field appears at the beginning of the label, but since there is no condition specified for `username`, the index search does not work.

WHERE published DESC


-- content로 검색하는 경우입니다.
This is the case when searching by content.
-- 인덱스에 content 없어서 인덱스 검색이 작동하지 않습니다.
Index search is not working because the index lacks content.

WHERE content='hello'

— sqlite는 B-Tree구조로 되어 있습니다.
SQLite uses a B-Tree structure.

— 나무처럼 뿌리에서 가지,잎과 유사한 형태로 점점 뻗어나가면서 데이터 인덱스(라벨)가 저장됩니다.
A data index stores data indexes (labels) in a form similar to how a tree branches out into limbs and leaves.

— 이때 잎이나 가지에 해당하는 곳에 라벨로 데이터베이스 필드와 날짜를 많이 사용합니다.
In this case, database fields and dates are frequently used as labels for the parts corresponding to leaves or branches.

— 인덱스를 사용하면 검색시 데이터 전체 검색을 하지 않아도 됩니다.
Using an index eliminates the need to scan the entire dataset during a search.

— 인덱스에서 데이터베이스 필드이름이나 날짜가 같은 라벨에서만 찾으면 되기때문에 속도가 빠릅니다.
It is fast because the search within the index is limited to labels matching the database field name or date.
